CNT/Graphene Coating for Lithium-Ion Battery

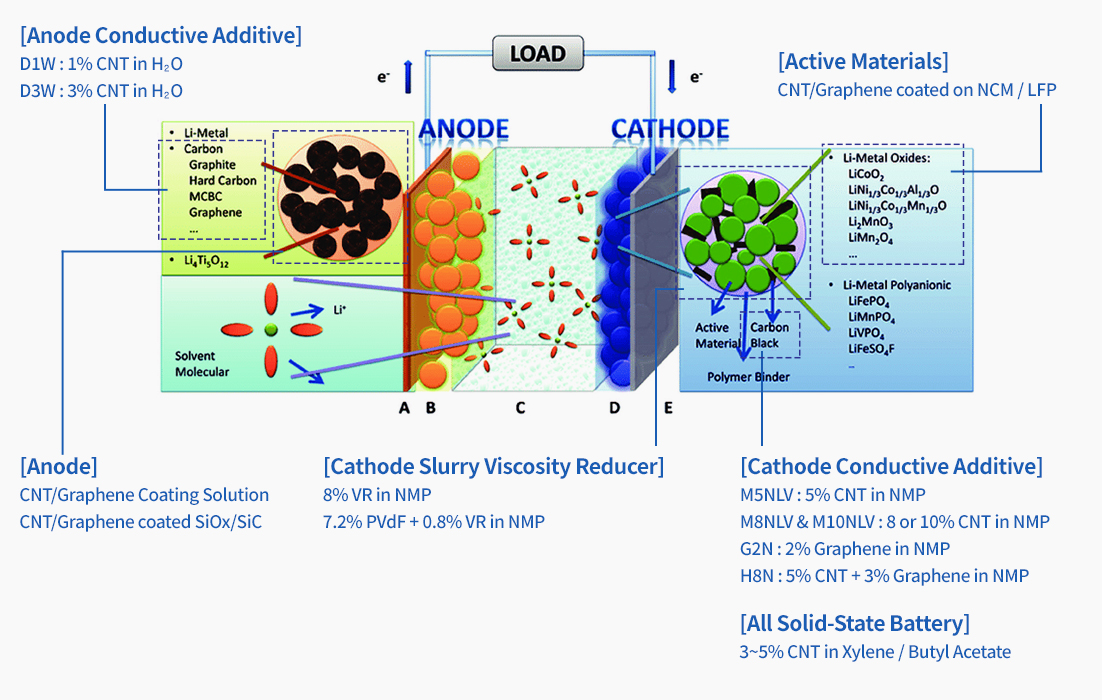

Li-ion Battery

Specifications of Products

Category Product Bare CNT Dispersed Products
Particle size(㎛)		 Diluent CNT
Type		 CNT
(wt%)		 Graphene
(wt%)		 Additive
(wt%)
Diameter
(nm)		 Length
(㎛)		 D50 D90
Conductive Cathode M5N 8~13 50~150 3~8 10~15 NMP MWCNT 5 - 1
M8N 8~13 50~150 3~8 10~15 NMP MWCNT 8 2
SCB-H8N 8~13 50~150 3~5 7~9 NMP MWCNT 5 3 1.2
Anode D1W 5~7 50~150 3~8 5~8 Water TWCNT 1 - 2.1
D3W 5~7 50~150 3~8 5~8 Water TWCNT 3 - 3.1
S15W 1.1~1.4 >5 2~4 8~12 Water SWCNT 1.5 - 1.6
Coating
Solution
for Si		 Anode E01 5~7 50~150 3~5 8~12 Ethanol TWCNT 1 - 2
E03 5~7 50~150 5~7 10~14 Ethanol TWCNT 3 - 6
GH05W rGO-H Graphene 1~3 3~5 Water - 0.5 0.5
GN05W rGO-H Graphene 1~3 3~5 Water - 0.5 0.5
Category Product Binder Dilluent Non-Volatile
(wt%)
Viscosity
Reducer		 Cathode SCB-VR8N Rubber NMP 8

※ ⑴SWCNT stands for Single Wall CNT ⑵TWCNT(SCB-D Series) stands for Thin Wall CNT ⑶MWCNT stands for Multi Wall CNT

※ According to Customer's request, we can offer the service to change of particle size, solvent, and binder.

※ Values indicated in this data sheet describe typical properties and do not constitute specification limits

CNT / Graphene Coated on Active Materials

CNT Coated on NCM (Single Crystal)

CNT Coated on NCM (Polycrystalline)

CNT Coated on LFP

CNT Coated on SiOx

CNT Coated on SiC

Graphene Coated
on Active Materials
