CARBON T&C
锂电池关联产品

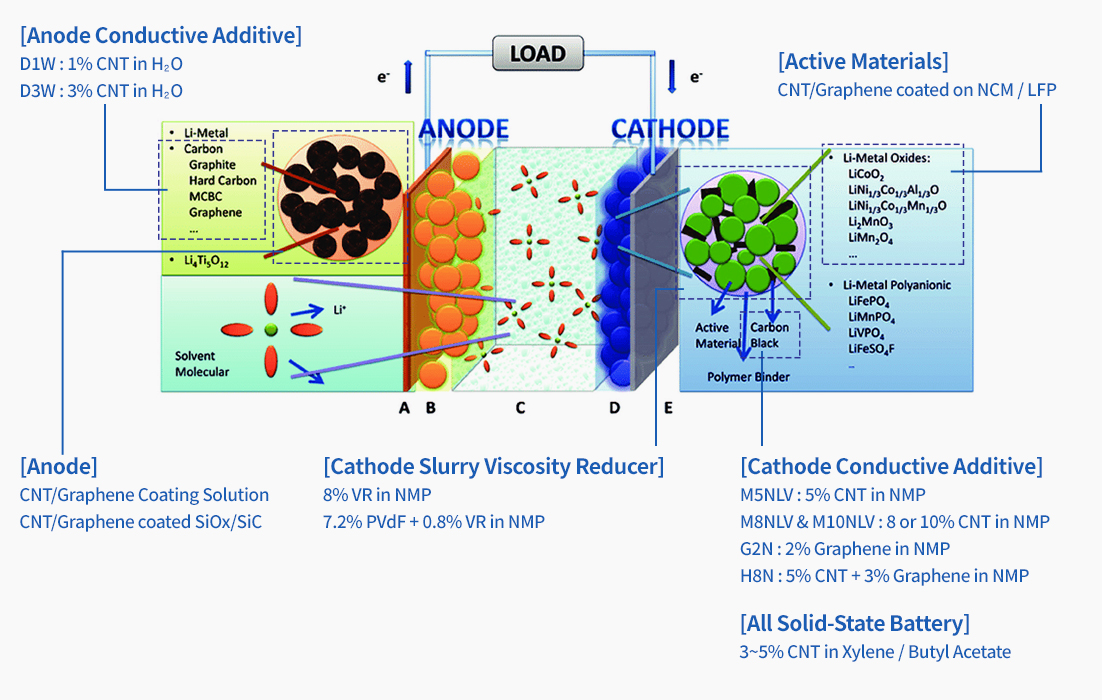

Li-ion Battery
Specifications of Products
| Category | Product | Bare CNT | Dispersed Products Particle size(㎛) |
Diluent | CNT Type |
CNT (wt%) |
Graphene (wt%) |
Additive (wt%) |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter (nm) |
Length (㎛) |
D50 | D90 | ||||||||
| Conductive | Cathode | M5N | 8~13 | 50~150 | 3~8 | 10~15 | NMP | MWCNT | 5 | - | 1 |
| M8N | 8~13 | 50~150 | 3~8 | 10~15 | NMP | MWCNT | 8 | 2 | |||
| SCB-H8N | 8~13 | 50~150 | 3~5 | 7~9 | NMP | MWCNT | 5 | 3 | 1.2 | ||
| Anode | D1W | 5~7 | 50~150 | 3~8 | 5~8 | Water | TWCNT | 1 | - | 2.1 | |
| D3W | 5~7 | 50~150 | 3~8 | 5~8 | Water | TWCNT | 3 | - | 3.1 | ||
| S15W | 1.1~1.4 | >5 | 2~4 | 8~12 | Water | SWCNT | 1.5 | - | 1.6 | ||
| Coating Solution for Si |
Anode | E01 | 5~7 | 50~150 | 3~5 | 8~12 | Ethanol | TWCNT | 1 | - | 2 |
| E03 | 5~7 | 50~150 | 5~7 | 10~14 | Ethanol | TWCNT | 3 | - | 6 | ||
| GH05W | rGO-H Graphene | 1~3 | 3~5 | Water | - | 0.5 | 0.5 | ||||
| GN05W | rGO-H Graphene | 1~3 | 3~5 | Water | - | 0.5 | 0.5 | ||||
| Category | Product | Binder | Dilluent | Non-Volatile (wt%) |
|
|---|---|---|---|---|---|
| Viscosity Reducer |
Cathode | SCB-VR8N | Rubber | NMP | 8 |
※ ⑴SWCNT表示单壁碳纳米管⑵TWCNT(SCB-D系列)表示薄壁碳纳米管⑶MWCNT表示多壁碳纳米管
※ 可根据客户要求更换粒度、溶剂、粘结剂等。
※ 本数据表中所示值仅为典型性能，不规定规格限制
CNT / Graphene Coated on Active Materials
CNT Coated on NCM (Single Crystal)
CNT Coated on NCM (Polycrystalline)
CNT Coated on LFP
CNT Coated on SiOx
CNT Coated on SiC
Graphene Coated
on Active Materials
